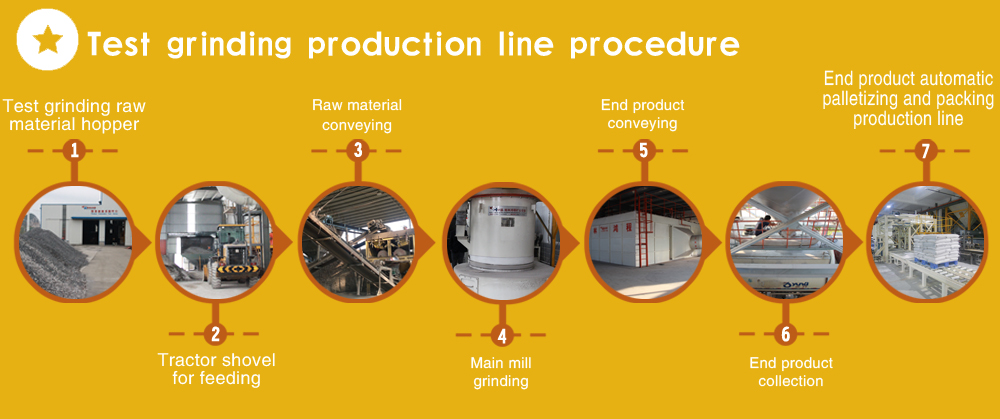

Guilin HCM Machinery has the largest powder manufacturing equipment test center which can provide material grinding test service. The test center covers an area of 3000sqaure meters, the center has 4 items of large medium scale equipment matching automatic powder manufacturing production lines. The automatic powder manufacturing production line is an integration of raw material crushing, raw material conveying, grinding, finished product conveying, finished product collecting, finished product packaging & stacking.The test center has the following models of equipment: HC1000 vertical pendulum mill, HCH980 superfine ring roller mill, HLMX1100 superfine vertical mill, HLM1700vertical mill, The applicable materials are: minerals with Mohs hardness below 7,moisture below 6% such as limestone, calcite, active carbon, talc, dolomite, titanium dioxide, quartz stone, bauxite, marble, feldspar, barite, fluorite, gypsum, ilmenite, phosphorite, argil, graphite, clay, kaolin, diabase, coal gangue, wollastonite, slaked lime, zircon sand, bentonite, manganese ore, copper ore, iron ore, water granulated slag, slag, cement raw material, all kinds of coal. The finished product fineness range is 80-2500meshes.

Our experienced engineers can adjust the configuration of equipment accordingly based on the test grinding data result& mineral features, and they can provide scientific & reasonable model choosing scheme.

HC1000 Vertical Pendulum Grinding Mill

HC1000 vertical pendulum mill is a new type of mill based on the improvement of R type mill, it has the advantages of superior performance, higher efficiency and lower energy consumption.HC1000 vertical pendulum mill can grind nonflammable and noncombustible materials with Mohs hardness below 7, moisture below 6%, such as limestone, calcite, active carbon, talc, dolomite, barite, fluorite, gypsum, slaked lime, bentonite, manganese etc. The fineness range is 0.18-0.0022mm (80-600meshes)

Main Specifications:

1.Maximum Material Feeding Size:

2.Finished Product size:

3.Capacity:

4. Total Power:

≤20mm

0.18-0.022mm

1-6Tt/h

105kw

HCH980 Superfine Ring Roller Mill

HCH980 superfine ring roller mill is the product based on years of R&D and production experience, it has the performance of roll-in, grinding, impacting, it can grind nonmetallic mineral with Mohs hardness below 7, moisture below 6% such as talc, calcite, calcium carbonate, dolomite, bentonite, kaolin, graphite, carbon etc. The finished product grain size can be 2500meshes. It has the advantages of high efficiency, low energy consumption and it is suitable for producing ultrafine powder.

Main Specifications:

1.Maximum Material Feeding Size:

2.Finished Product Size:

3.Capacity:

4.Total Power:

≤10mm

0.045-0.005mm

1.5-6t/h

237kw

HC1000 Vertical Grinding Mill

HLMX1100 superfine vertical mill is the product based on the introduction of foreign advanced technology and improvement of HLM vertical mill. It has the advantages of high efficiency output, low energy consumption and eco-friendliness. The mill is equipped with static dynamic combination classifier, the finished product fineness range is 0.045-0.005mm (325-2500meshes). It can grind nonmetallic mineral limestone, calcite, marble, kaolin, calcite, barite, bentonite, pyrophylite etc.

Main Specifications:

1.Maximum Material Feeding Size:

2.Finished Product Size:

3.Capacity:

4.Total Power:

≤10mm

0.045-0.005mm

4-10t/h

425-580kw

HLM1700 Vertical Grinding Mill

HLM1700 vertical grinding mill is the product based on more than 20 years of R&D and introduction of foreign advanced technology , it is an integration of drying, grinding, classifying and conveying, it has the following advantages: high efficiency, low energy consumption, space saving, low noise, less dust emission, simple maintenance, low running cost, less consumption of wear parts. The mill is widely used in cement raw material ,cement clinker, desulfurized limestone powder,manganese ore, gypsum, coal, barite, calcite, bauxite etc.

Main Specifications:

1.Maximum material feeding size:

2.Finished Product Size:

3.Capacity:

4.Total power:

≤30mm

0.18-0.015mm(80-800mesh)

20-45t/h

765-830kw
