HCM HLM Vertical Roller Mill Applications Worldwide

Vertical roller mills are advanced grinding equipment integrating automation, large-scale production, and high efficiency. Their applications have expanded from the cement industry to various sectors including steel, metallurgy, energy, power generation, chemical engineering, and environmental protection. Today, vertical mills play a vital role in the global mineral powder processing industry.

The HLM Vertical Roller Mill series developed by HCM has become a widely recognized grinding solution in international markets. With outstanding performance and numerous successful projects worldwide, HLM provides strong support for the development of the global powder processing industry.

High Efficiency and Intelligent Operation: Global HLM Vertical Roller Mill Success Cases

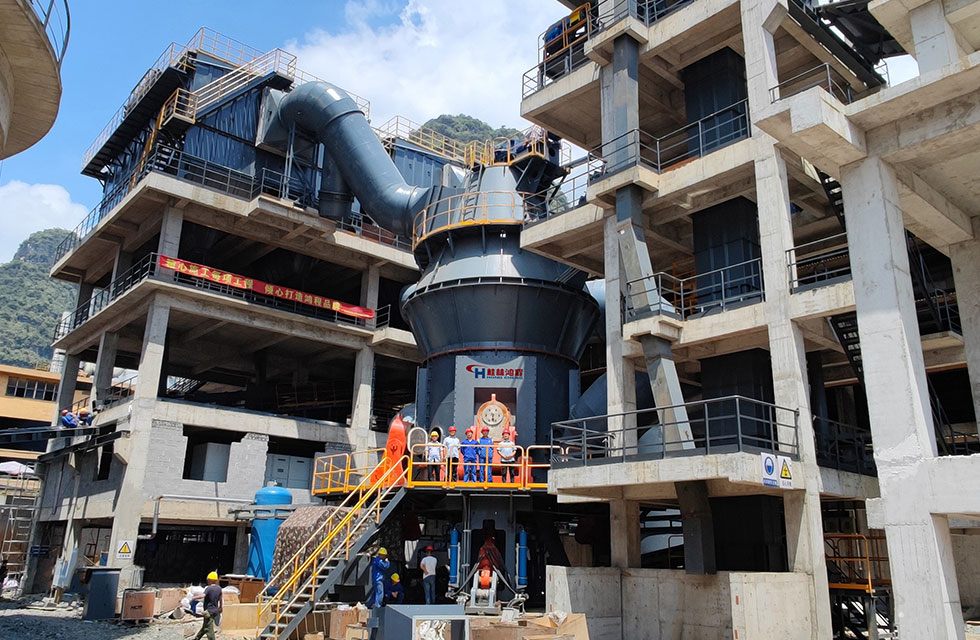

 Model: HLM42/3K Vertical Roller Mill  Material: Manganese Ore  Final Application: Production of Metallic Manganese through Smelting  Fineness: 200 mesh D90

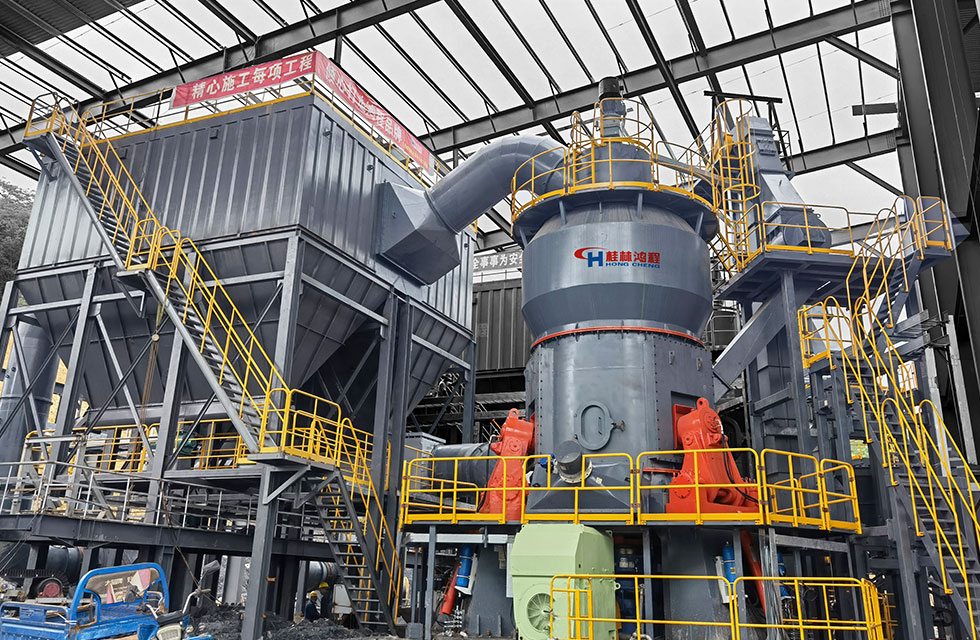

Model: HLM36/3K Vertical Roller Mill Material: Coal Gangue  Final Application: Preparation of Calcined Kaolin Fineness: 325 mesh D90

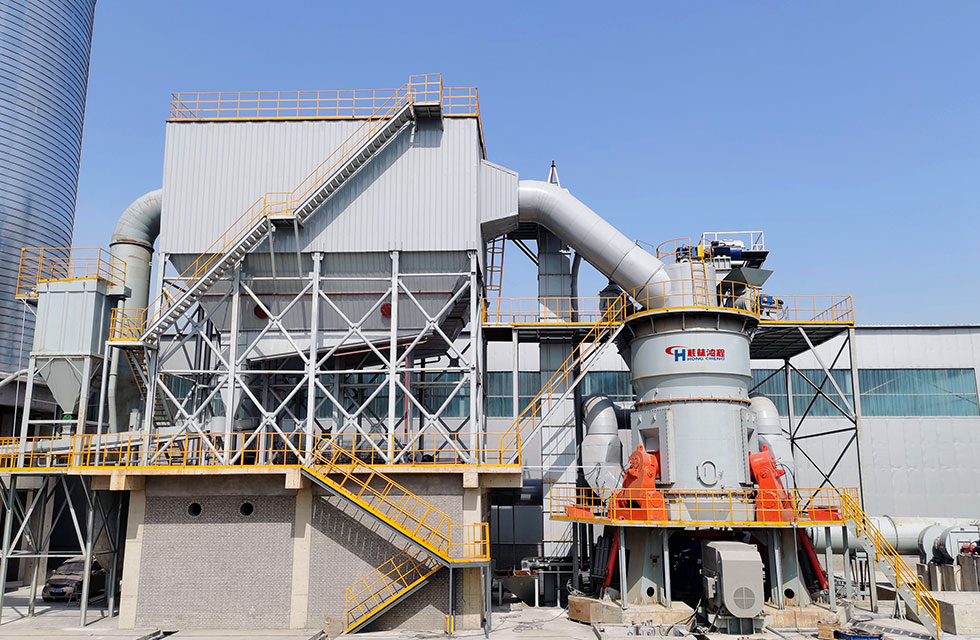

Model: HLM34/3K Vertical Roller Mill Material: Limestone Final Application: Flue Gas Desulfurization (FGD) in Power Plants Fineness: 325 mesh D90

Complete HLM Vertical Roller Mill Production Line

HCM provides customized grinding solutions based on the specific requirements of each project. The complete grinding system includes feeding, conveying, grinding, classification, dust collection, intelligent control, transportation, and storage systems. In addition, HCM provides comprehensive lifecycle services throughout the entire project, including:
Solution Design
Process Selection
Equipment Manufacturing
Installation and Commissioning
Operator Training
Wear Parts Remanufacturing and Maintenance
Operation and Maintenance Management
Choosing an HLM Vertical Roller Mill means choosing an efficient, reliable, and low-risk grinding solution.

Why Does the HLM Series Stand Out?

1. High Grinding Efficiency and Stable Operation

The optimized contact area between grinding rollers and grinding table significantly improves grinding efficiency.
Energy consumption is 40%–50% lower than conventional ball mills.
High production capacity per unit.
Equipped with high-quality reducers from internationally recognized brands to ensure stable operation and low failure rates.

2. Precise Classification and Stable Product Quality

Short material retention time inside the mill reduces over-grinding.
Higher purity of final products.
Narrow and uniform particle size distribution.
Excellent powder flowability.
Stable and controllable product quality for different industrial applications.

3. Superior Wear Resistance and Extended Service Life

Grinding rollers and grinding table liners are manufactured with wear-resistant materials and advanced overlay welding technology.
Multiple rebuilding and refurbishment options extend component service life.
Roller sleeves can be reversed to maximize utilization.
Hydraulic loading system simplifies maintenance and reduces downtime.

4. Low Noise Operation and Environmentally Friendly Performance

Fully sealed system operating under negative pressure.
Equipped with a high-efficiency pulse dust collector.
Provides an almost dust-free working environment.
The material bed grinding principle prevents direct contact between grinding rollers and grinding table, significantly reducing operating noise.

5. Simplified Process and Lower Overall Investment

Simplified grinding process flow.
Installation footprint reduced to approximately 60% of traditional grinding systems.
Suitable for outdoor installation.
Capable of processing materials with moisture content up to 20% by using hot air drying, reducing or eliminating the need for additional drying equipment in many applications.
