Buying Guide for Coal Gangue Powder Vertical mill|Price of Vertical Roller Mill

Coal gangue belongs to solid waste residue. The high recycling value of coal gangue is the development trend of solid waste residue in the future. How to grind coal gangue with vertical mill? HCMilling(Guilin Hongcheng) has rich experience in grinding cases in the field of coal gangue grinding, and provides professional Vertical Pulverizer equipment to create more economic value for customers. The following will make a detailed introduction from the aspects of process flow, advantages and characteristics, product quotation and so on.

Technological process of coal gangue vertical mill

As solid waste residue, HCM recommends the use of vertical mill equipment to help the production and grinding. The equipment is an energy-saving and environment-friendly representative pulverizer. The process flow includes crushing, pulverizing, grading and powder collection.

Crushing: crushing raw ore with crusher.

Grinding: materials enter the grinding roller table and are continuously squeezed, ground, sheared and crushed under the pressure of the grinding roller.

Classification: the hot air is ejected from the air ring around the grinding disc at high speed and evenly upward. The milled materials are blown up by the high-speed air flow at the air ring. On the one hand, the materials with coarse particle size are blown back to the grinding disc for re grinding, on the other hand, the suspended materials are dried, and the fine powder is brought into the classifier by the hot air for classification.

Powder collection: the qualified fine powder flows out of the mill with the gas and is collected by the dust collection equipment as the product.

Introduction of advantages of vertical coal gangue pulverizer

What are the advantages and characteristics of the vertical grinding mill equipment? As a special equipment dedicated to the field of solid waste residue, the coal gangue vertical mill equipment is environmentally friendly, energy-saving, efficient and high-yield. It has a wide range of grinding fields (used in many markets such as solid waste residue, non-metallic ore, coal mine, thermal power plant and cement plant), and there are rich types of grinding (grinding high humidity materials, dry materials, difficult grinding materials, easy grinding materials, etc.) to see its technical parameters.

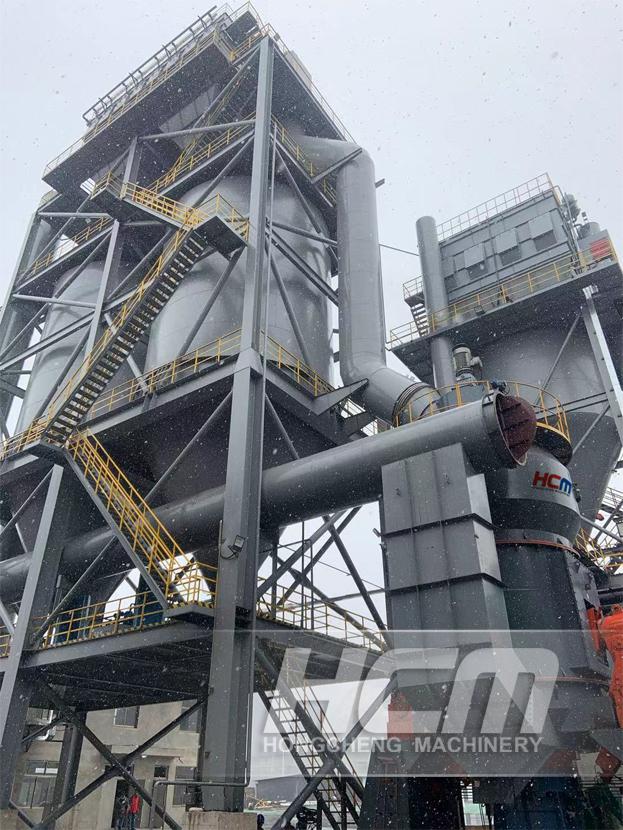

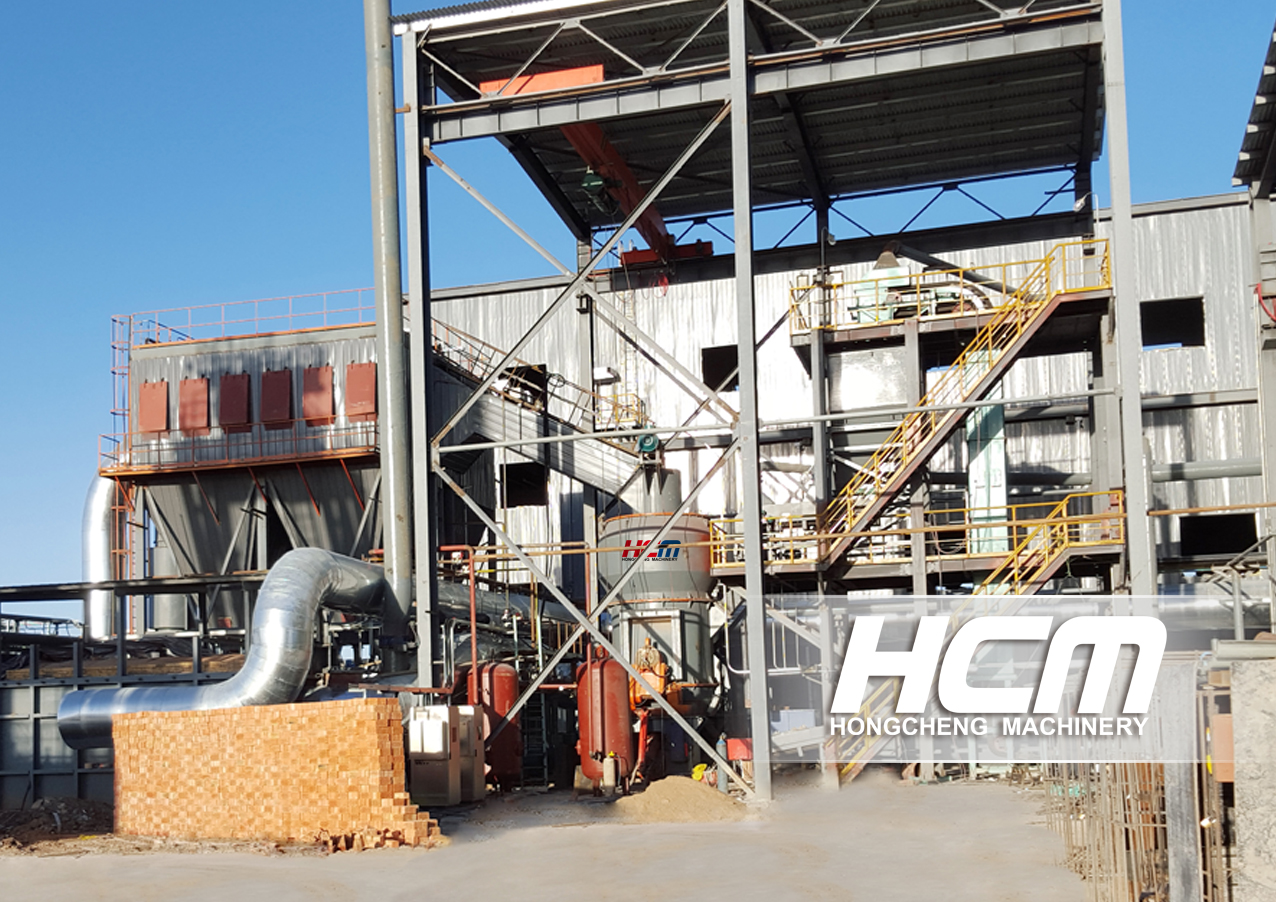

Ore pulverizer equipment produced by HCM - HLM vertical roller mill

[Finished product fineness]: 22-180μm

[production capacity]: 5-700t / h

[grinding field]: it is aimed at various non-metallic mineral materials with Mohs hardness below grade 7 and humidity within 6%. The mill is widely used in power, metallurgy, cement, chemical industry, rubber, coating, ink, food, medicine and other production fields.

[performance characteristics]: it integrates drying, grinding, grading and conveying. It has the characteristics of high grinding efficiency, low power consumption, large feed particle size, easy adjustment of product fineness, simple equipment process flow, small floor area, low noise, low dust, simple use and maintenance, low operation cost and low consumption of wear-resistant materials.

How much is a coal gangue vertical mill?

HCM has rich professional cases in grinding coal gangue for consultation and investigation. Taking customers as the center and from the perspective of customers, we provide customized design and selection scheme services. The needs of each grinding project are carefully analyzed, and a professional grinding production line scheme that can meet the needs of customers and improve production capacity and energy efficiency is formulated. In this way, the quotation of the equipment equipped is more in line with the needs of customers, reducing costs and increasing production, which is very popular.

How to grind coal gangue with vertical roller mill? If you want to know more and more detailed product information, please feel free to come to HCM, the vertical mill equipment R&D manufacturer, to learn more about the equipment details.

If you are in need of any non-metallic grinding mill, contact mkt@hcmilling.com or call at +86-773-3568321, HCM will tailor for you the most suitable grinding mill program based on your needs, more details please check www.hcmilling.com.
