Release date: 2022-07-25 16:22:38
The 600-mesh calcium carbonate grinding mill has a small footprint and is environmentally friendly. Calcium carbonate is known as "industrial monosodium glutamate". The demand in the market continues to rise, and the demand for 600-mesh calcium carbonate grinding mills is also increasing. 600-mesh carbonic acid What are the parameters of the calcium grinder and what is the quotation? The following is a detailed introduction to you.
What is calcium carbonate?
Calcium carbonate is an important inorganic compound, commonly known as limestone, limestone, stone powder, marble, and calcite. It is alkaline, basically insoluble in water, and soluble in hydrochloric acid. It is a common substance on earth and exists in aragonite, calcite, chalk, limestone, marble and other rocks, and is an important building material. Widely used in papermaking, rubber, plastics, coatings and other fields.
600 mesh calcium carbonate grinding mill parameters, picture details
The processing capacity of the 600-mesh calcium carbonate grinding mill is generally between 1-50t/h, which is very suitable for large-scale and large-capacity manufacturers to produce high-end calcium carbonate. According to different needs, different types of mills can be selected. Production, the following is a detailed introduction for you.

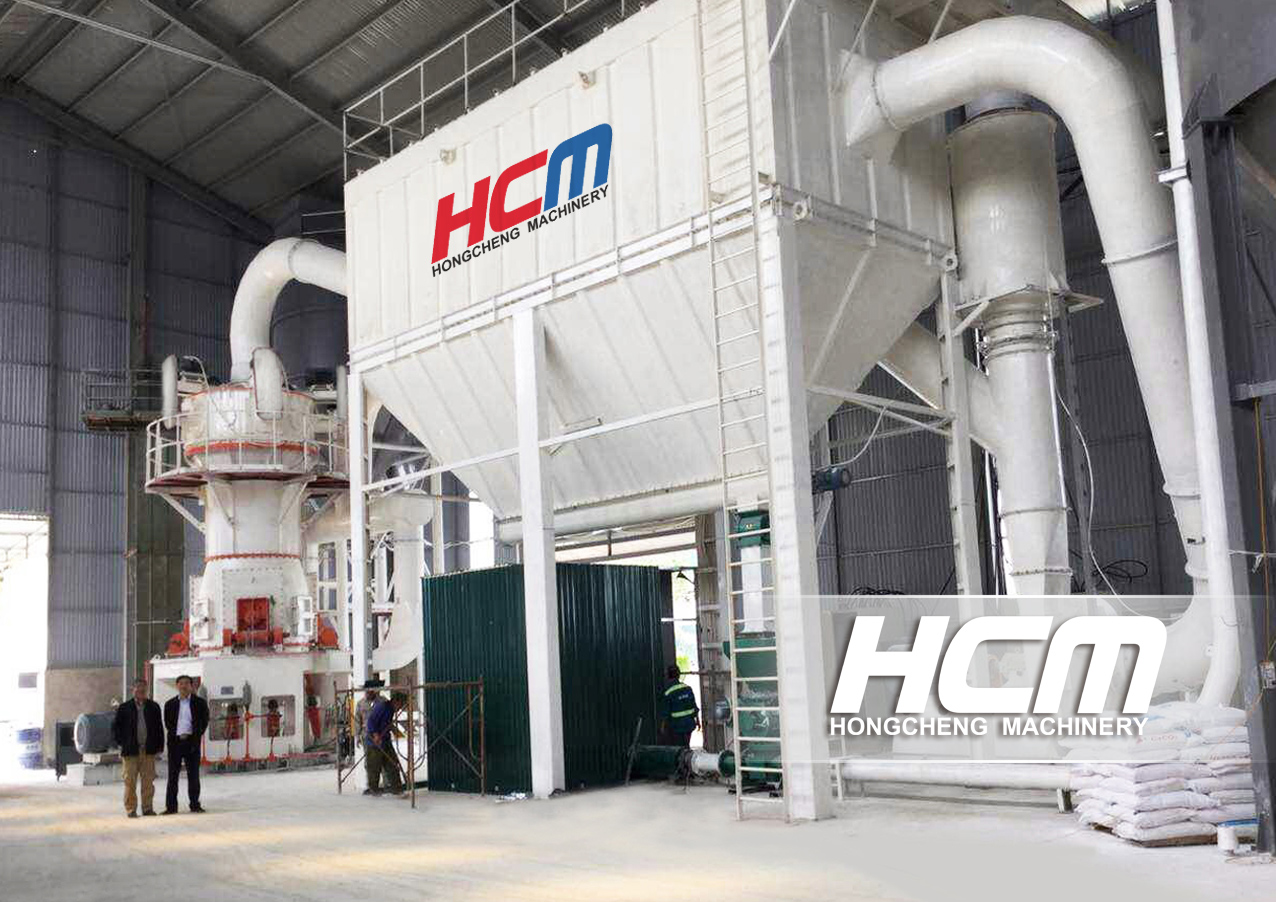

HLMX Calcium carbonate Ultrafine vertical roller mill-HCM
1. Calcium carbonate Ultrafine vertical roller mill
The ultra-fine vertical grinding equipment is an ideal equipment for large-scale production in line with market demand and mature technology, which can replace imported equipment. It can easily achieve 600 mesh calcium carbonate grinding powder. The specific 600 mesh calcium carbonate grinding machine parameters are as follows:
|
Model |
Nominal diameter of grinding disc(mm) |
Raw material particle size(mm) |
Raw material moisture |
Finished fineness |
Capacity |
Main mill rate(kw) |
|
HLMX600 |
600 |
＜10 |
≤5% |
7-22μm The finest fineness can reach 3μm (with secondary classification system) |
1-6 |
55 |
|
HLMX880 |
880 |
＜10 |
≤5% |
2-8 |
160 |
|
|
HLMX1000 |
1000 |
＜10 |
≤5% |
3-12 |
200 |
|
|
HLMX1100 |
1100 |
＜10 |
≤5% |
4-14 |
250 |
|
|
HLMX1300 |
1300 |
＜10 |
≤5% |
5-16 |
280 |
|
|
HLMX1500 |
1500 |
＜10 |
≤5% |
7-18 |
355 |
|
|
HLMX1700 |
1700 |
＜10 |
≤5% |
8-20 |
500 |
|
|
HLMX2000 |
2000 |
＜10 |
≤5% |
10-25 |
560 |
|
|
HLMX2400 |
2400 |
＜10 |
≤5% |
20-40 |
800 |
|
|
HLMX2600 |
2600 |
＜10 |
≤5% |
25-45 |
1400 |
|
|
HLMX2800 |
2800 |
＜10 |
≤5% |
30-50 |
1800 |
Note: Due to different materials and different output, the above data are for reference only.
HCH Ultrafine Ring Roller Mill
2. Calcium carbonate Ultrafine Ring Roller Mill
The ultra-fine ring roller mill grinds 600 mesh calcium carbonate, which has the advantages of comprehensive mechanical crushing performance such as rolling, grinding and impact, and can achieve more efficient and energy-saving. It is an energy-saving and consumption-reducing equipment in the field of ultra-fine calcium carbonate processing in China. The parameters of the equipment 600 mesh calcium carbonate grinding mill are as follows:
|
Model |
Nominal diameter of grinding disc(mm) |
Raw material particle size(mm) |
Capacity(t/h) |
Weight(t) |
Whole machine power(kw) |
|
HCH780 |
≤10 |
0.04-0.005 |
0.7-3.8 |
17.5 |
144 |
|
HCH980 |
≤10 |
0.04-0.005 |
1.3-6.8 |
20 |
237 |
|
HCH1395 |
≤10 |
0.04-0.005 |
2.6-11 |
44 |
395 |
|
HCH2395 |
≤10 |
0.04-0.005 |
5-22 |
70 |
680 |
Note: The above takes the processing of calcite (feeding degree ≤10) as an example. Due to different materials and different output in different places, the above data is for reference only.
600 mesh calcium carbonate pulverizers are sold directly at the production price, and there are many HCM models and choices.
The price of a 600-mesh calcium carbonate grinding mill from HCMilling(Guilin Hongcheng) is the ex-factory price. It goes through the layers of middlemen, and the raw materials are directly supplied, and the workshop is self-sufficient in production. In addition, the manufacturer's sales model is factory direct. Therefore, buy Guilin Hongcheng The price of 600 mesh calcium carbonate grinding mill is more favorable.
