Calcite Grinding Mill Solution

Calcite ore is a common non-metallic mineral which needs specialized calcite powder grinding mill for processing . How to choose the optimal calcite grinding mill? Guilin Hcmilling (Guilin Hongcheng) is a leading enterprise in the field of grinding mill manufacturing. Hongcheng group is very experienced in ore powder grinding. It’s grinding mill features high production capacity, environmental protection and energy saving. Ultrafine grinding mill is the main equipment among fine grinding mills, and is also a specialized grinding mill that helps the calcite fine powder market to increase production and create benefit.

An Introduction to calcite grinding mill

You will need specialized calcite grinding mill to grind calcite. What equipment is the ultra-fine mill? It is a grinding mill equipment that designed for grinding fine powder like calcite, fitness can be adjusted between the range of 325-2500 mesh.

Guilin Hcmilling (Guilin Hongcheng) owns a good reputation in the industry for its quality and service. To improve the quality of the grinding mill, Hcmilling (Guilin Hongcheng) has introduced and learned advanced grinding technology to create benefits for the calcite powder market.  Let's have a look at the advantages of the ultra-fine grinding mill.

Ultra-fine grinding mill is used in the fine powder processing market, with the comprehensive mechanical pulverizing properties like rolling, grinding and impact, and etc., which can be applied to any non-metallic minerals with Moh’s hardness below 7 and moisture below 6%. In the field of calcite grinding，Guilin Hcmilling (Guilin Hongcheng) has built many excellent grinding mill production line solutions that have been recognized and praised by customers. Hongcheng's ultra-fine grinding mill equipment has many advantages such as less occupied area, strong structure, wide application, simple operation and convenient maintenance,  it is the mainstream grinding mill in the market of fine powder processing.

Guilin Hongcheng newly environmentally protection grinding mill equipment -HCH superfine ring roller grinding mill

{Grinder weight}: 17.5-70t

{Capacity}: 1-22t/h

{Fineness of product}: 0.04-0.005mm

{Application range}: widely used in the deep processing fields like metallurgy, chemical rubber, paint, plastics, pigments, inks, building materials, medicine, food and etc. Its outstanding grinding effect makes it become the ideal grinding mill for non-metallic minerals deep processing for .

{Application materials}: It can process non-metallic minerals into fine grinding, such as calcium carbonate, barite, calcite, gypsum, dolomite, and potassium feldspar, fineness is easy to be adjusted, operation is simple.

{Grinding feature}: The mill featuring widely used, easy operation, easy maintaining, stable performance, high-efficiency and environmentally protection, and cost-effective. It is a superfine grinding mill in the field of grinding equipment.　

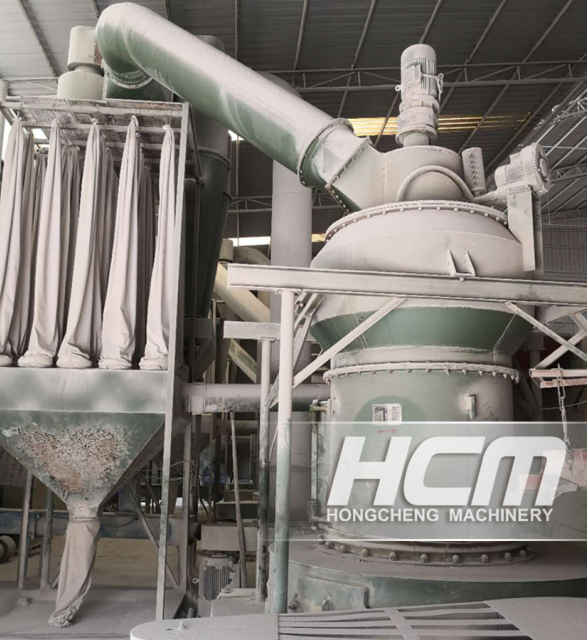

As a fine grinding milling equipment, the ultra-fine grinding mill system consists of main mill, feeder, classifier, blower, pipeline device, storage hopper, electric control system, collection system, etc., with advanced grinding milling technology, reasonable equipment structure, it is an energy-saving and noise-reducing grinding milling equipment.

The material pass through the gap between the ring and roller and will be smashed by the rotating rollers, the roller including 4 layers(there are 3 layers for the type of HCH780). Materials will be ground 1st time when passing the 1st layer of the roller and ring. Then be ground second, third and forth time when loop through each layer rollers, thus the materials were ground sufficient and obtain much fine powder. The powder fallen down onto the bottom table by gravity will goes up to the classifier for separation by the airflow from blower. The qualified fineness passing from the classifier will be collected by the pulse bag collector as final product, while unqualified fallen down for regrinding till passing through. The powder goes with air flow into the pulse bag filter and collects by the discharging valve.

How to find the best solution for calcite grinding project? The calcite grinding mill manufactured by Hongcheng equipment featuring high production capacity, low energy consumption, environmental protection and energy saving, which is a optimal calcite grinding mill, nowadays superfine grinding milling is the mainstream equipment for superfine grinding.
