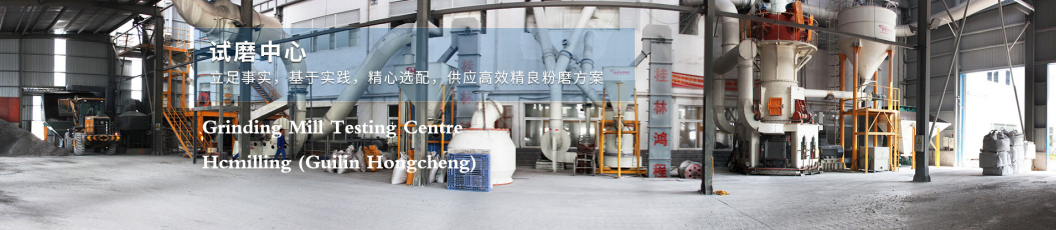

Grinding Mill Testing Centre

Grinding Mill Testing Centre Brief Overview

Hcmilling (Guilin Hongcheng) has a large-scale grinding milling testing center that provides complete material grinding testing service. The testing center covers an area of 3,000 square meters, 4 sets of medium-large powder processing equipment. The automatic milling production plant including the whole process from raw material crushing and transportation, grinding, finial product transportation, collection and storage to full-automatic packaging and palletizer. There are HC1000 vertical pendulum grinding mill, HCH980 ultra-fine grinding Mill, HLMX1100 superfine vertical grinding mill, and HLM1700 vertical grinding mill in the centre for trial grinding diverse non-flammable and non-explosive minerals with Mohs hardness under 7 and moisture under 6% to fineness between 80-2500 mesh adjustable, such as limestone, calcite, activated carbon, talc, dolomite, titania, quartzite, bauxite, marble, feldspar, barite, fluorite, gypsum, ilmenite, phosphate rock , Clay, graphite, clay, kaolin, diabase, coal gangue, wollastonite, slaked lime, zircon sand, bentonite, manganese ore, copper ore, iron ore, water slag, steel slag, cement raw materials, various coal mines and etc. Customers can test the grinding data personally to ensure the effectiveness.

Thanks to different types of material from various regions have obvious differences in the properties of impurities content, moisture content and others, therefore the effect of the same milling equipment is also different. By trial grinding the material, we can obtain the real and accurate data to learn the grinding effect of the grinding mill including fineness, throughput, sieving rate, etc. Hcmilling (Guilin Hongcheng) ‘s experienced engineers will also adjust the equipment configuration scientifically on the basis of the grinding testing data and the feature of the material to ensure an advanced model selection solution.

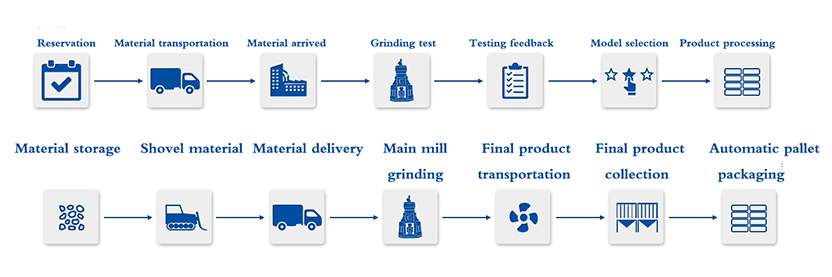

Material Trail Grinding process

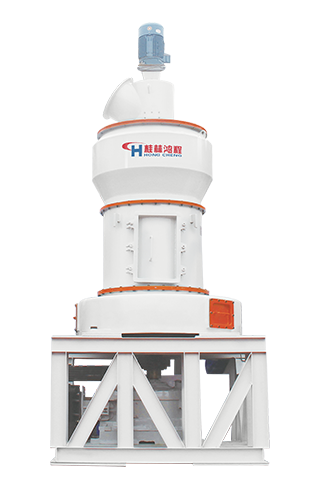

HC1000 Vertical Pendulum Grinding Mill

HC1000 vertical pendulum grinding mill is a technological innovation based on R-type grinding mill, each of its technical indicator has been greatly improved which makes it a new type efficient energy-saving grinding equipment that is suitable for grinding limestone, calcite, activated carbon, talc, dolomite, barite, fluorite, gypsum, hydrated lime, bentonite, manganese, etc., fineness can be adjusted between 0.18-0.0.022mm (80-600 mesh).

The Main Technical Parameters:

Maximum feed size: ≤20mm

Final product fineness: 0.18-0.022mm (80-600 mesh)

Capacity: 1-6Tt / h (according to the grain size of different raw materials)

Power: 105kw

HCH980 Ultra-fine Grinding Mill

Hcmilling (Guilin Hongcheng) HCH980 ultra-fine grinding Mill has integrated the mechanical pulverization properties of rolling, grinding and impacting, which is widely used in calcite, calcium carbonate, dolomite, bentonite, kaolin, graphite, carbon and other non-metallic minerals with a Mohs hardness of under 7 and moisture under of 6%, fineness can reach 2500 mesh, a preferred energy-saving and efficient grinding equipment for non-metallic minerals.

The Main Technical Parameters:

Maximum feed size: ≤10mm

Final product fineness: 0.045-0.005mm(325-2500 mesh)

Capacity: 4-10t / h (Based on the grain sizes of different raw material)

Power: 425-580kw

HLMX1100 Super Fine Vertical Grinding Mill

HLMX1100 superfine vertical grinding mill is an advanced technical equipment of high efficiency, large throughput rate, energy-saving and environmentally protection. Using dynamic and static combined classifier, fineness can be adjusted between 0.045-0.005mm (325-2500 mesh). It is widely used in non-metallic mineral products like limestone, calcite, marble, heavy calcium, kaolin, barite, bentonite, pyrophyllite and etc.

The Main Technical Parameters:

Maximum feed size: ≤10mm

Final product fineness: 0.045-0.005mm(325-2500 mesh)

Capacity: 4-10t / h (according to the grain size of different raw materials)

Power: 425-580kw

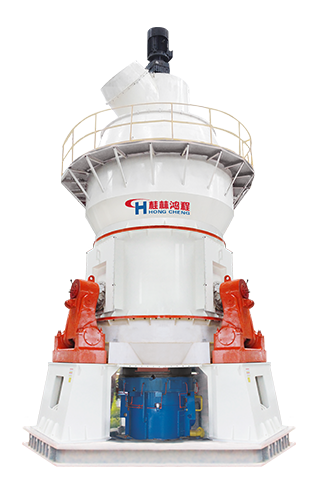

HLM1700 Vertical Grinding Mill

HLM1700 vertical grinding mill is an efficient and energy-saving grinding equipment integrating drying, grinding, classification, and conveying. Featuring efficient grinding, lower power consumption, smaller foot print, lower noise, minimized dust pollution, ease of maintenance and operation, lower operating cost, lower consumption of wear-resistant materials. It has diverse applications in power, metallurgy, cement, chemical, non-metallic ore and other industries that used for processing cement raw materials, clinker, lime powder for desulfurization, lime powder for mixing stations, fine slag powder, manganese ore, gypsum, coal, spar, calcite, bauxite and other materials.

The Main Technical Parameters:

Maximum feed size: ≤30mm

Final product fineness: 0.18-0.015mm（80-800 mesh)

Capacity: 20-45t/ h (according to the grain size of different raw materials)

Power: 765-830kw
