What is Aluminum Ore?

Aluminum ore can be economically extracted a natural aluminum ore, bauxite is the most important one. Alumina bauxite is also known  as bauxite, the main component is alumina oxide which is hydrated alumina containing impurities, is an earthy mineral; white or gray, shows in brownish yellow or pink color because of iron contained. Density is 3.9~4g/cm3, hardness 1-3, opaque and brittle; insoluble in water, soluble in sulfuric acid and sodium hydroxide solution.

Usage of Aluminum Ore

Bauxite is rich in resources, needed for many industries; therefore, it is a very popular non-metallic material, and the reason why it has been generally welcomed, mainly because it is very promising in the industrial field.

1. Aluminum industry. Bauxite used in national defense, aerospace, automotive, electrical, chemical and other daily necessities industries.

2. Casting. Calcined bauxite is processed into a fine powder for casting after the mould and used in military, aerospace, communications, instrumentation, machinery and medical equipment sectors.

3. For refractory products. High calcined bauxite refractoriness can reach up to 1780 ℃, chemical stability, good physical properties.

4. Aluminosilicate refractory fibers. With several advantages such as light weight, high temperature resistance, good thermal stability, low thermal conductivity, small heat capacity and resistance to mechanical vibration and so on. Can be used in iron and steel, nonferrous metallurgy, electronics, petroleum, chemical, aerospace, nuclear, national defense and other industries.

5. Raw material of magnesia and bauxite, added with appropriate binder, can be used for casting overall cylinder liner of molten steel ladle with very good results.

6. The manufacture of bauxite cement, abrasive materials, various compounds can be made of aluminum bauxite in ceramic industry and the chemical industry.

Model selection and technological process in Aluminum Ore powder processing

Aluminum ore ingredient analysis sheet

Al2O3、SiO2、Fe2O3、TiO2、H2O+S、CaO、MgO、K2O、Na2O、CO2、MnO2、Organic matter、Carbonaceous etcGa、Ge、Nb、Ta、TR、Co、Zr、V、P、Cr、Ni etc
 Over 95% Secondary ingredients Trace ingredients

Aluminum ore powder making model selection program

SpecificationDeep processing of fine powder(200-400mesh)
Equipment selection program Vertical grinding mill and Raymond grinding mill

Analysis on grinding mill models

1, Raymond Mill, HC series pendulum grinding mill: low investment costs, high capacity, low energy consumption, equipment stability, low noise; is the ideal equipment for wollastonite powder processing. But the degree of large-scale is relatively lower compared to vertical grinding mill.

2, HLM vertical mill: large-scale equipment, high capacity, to meet the large-scale production demand. Product has high degree of spherical, better quality, but the investment cost is higher.

Aluminum Ore powder processing technological process

Phrase one: raw material crushing
Aluminum blocks will be crushed to 15mm-50mm fineness by crusher.
Phrase two: grinding
Crushed aluminum powder material will be sent to the storage hopper by the elevator, and then the feeder will send the material to the main mill for grinding.
Phrase three: classifying
Grinded aluminum powder will be classified; coarse powder will fall back to the main mill to be grinded again.
Phase four: production collecting
qualified powder will flow with the air and be collected in the dust catcher, and then the finished powder will be transported to the product storage bin through discharge port. Lastly, the powder will be loaded by tank car or packed by packing machine.

We offer full set of calcite powder processing solution to convoy your calcite powder project!

Learn more about powder processing integration service

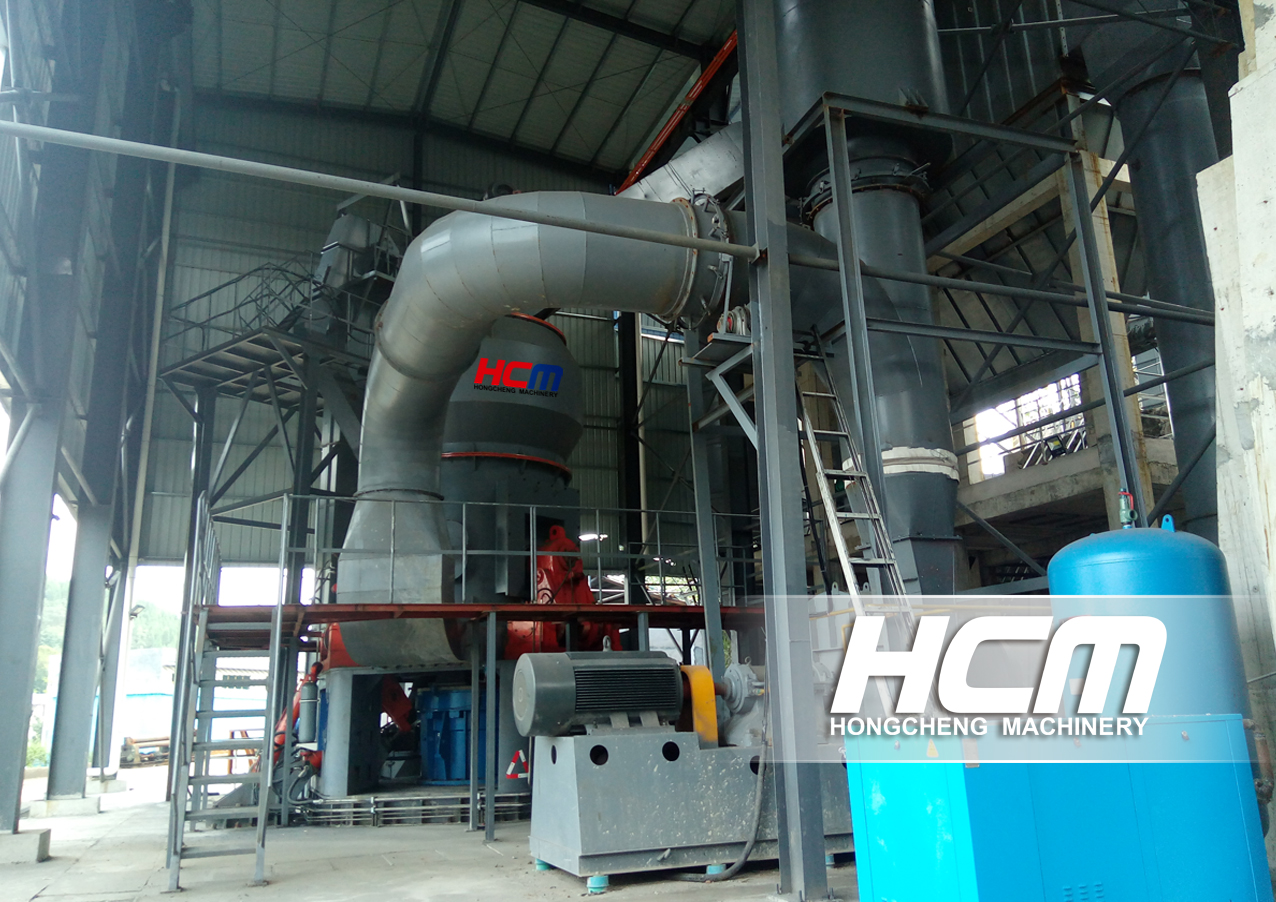

Application examples of Aluminum Ore powder processing

Some Aluminum processing enterprise

Material: Aluminum

Fineness: 325mesh D97

Capacity: 8-10t/h

Equipment: 1 set of HLM21

Customer feedback:

HC1300 output is almost 2t more than the traditional 5R machine for production of the same specifications of powder, lower energy consumption. The entire system is fully automatic control; workers only need to operate in the control room, simple operation, saving labor costs. Lower operating costs enable the product more competitive. And the entire project design, installation guidance, commissioning are free, we are very satisfied.
