The wollastonite grinding mill of HCMilling(Guilin Hongcheng) is a grinding mill equipment for materials in wollastonite powder production equipment. Special materials are selected for grinding rollers and discs. It is well manufactured. Compared with the ball mill, it improves the grinding capacity by 30 ~ 40%, has higher efficiency and greater output. Therefore, the consulting volume and shipment volume of HCM wollastonite mill have increased significantly. The hourly output and manufacturer's quotation of HCM wollastonite mill have always been the focus of customers. What is the price of HCM wollastonite grinding mill?

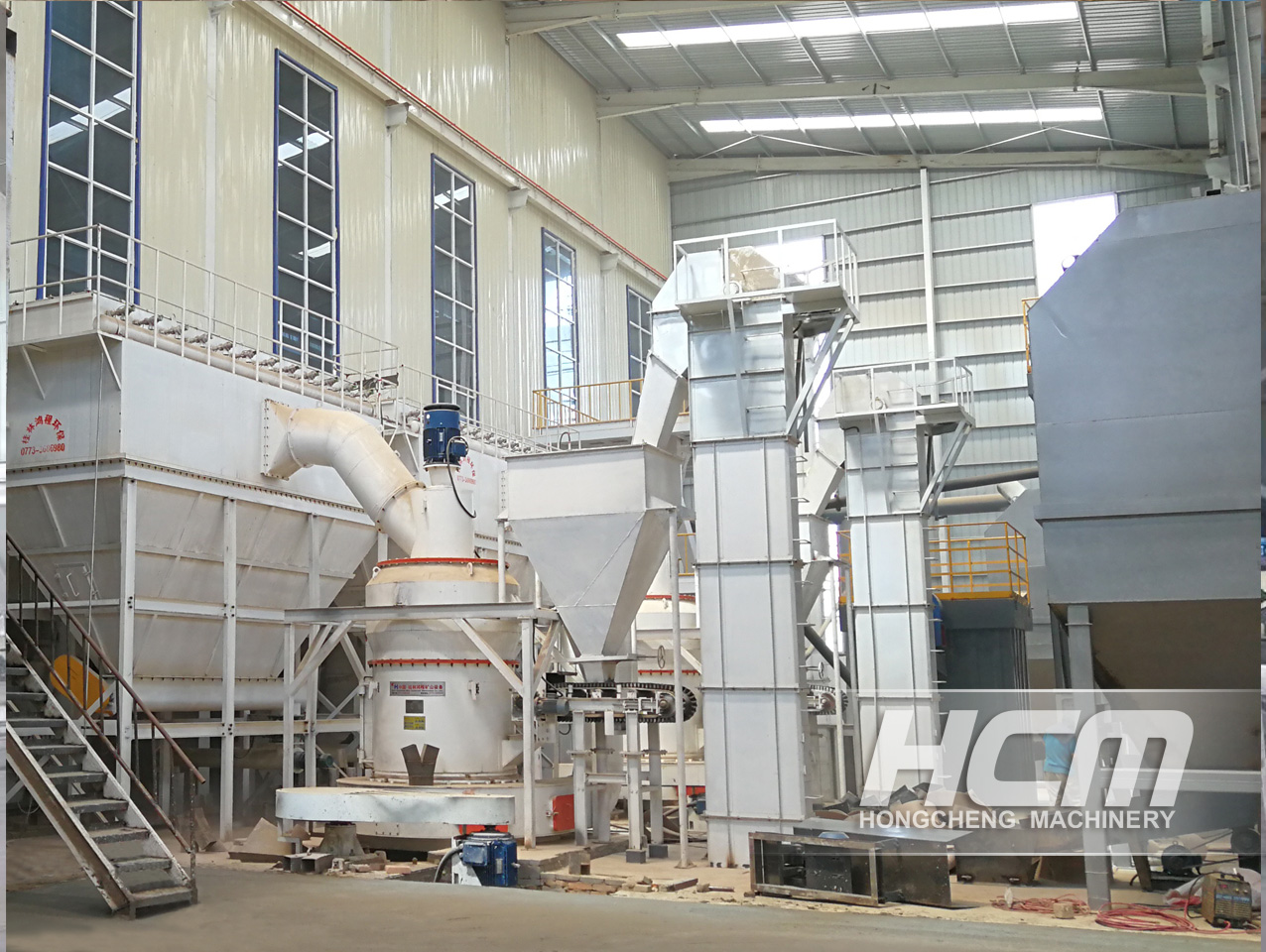

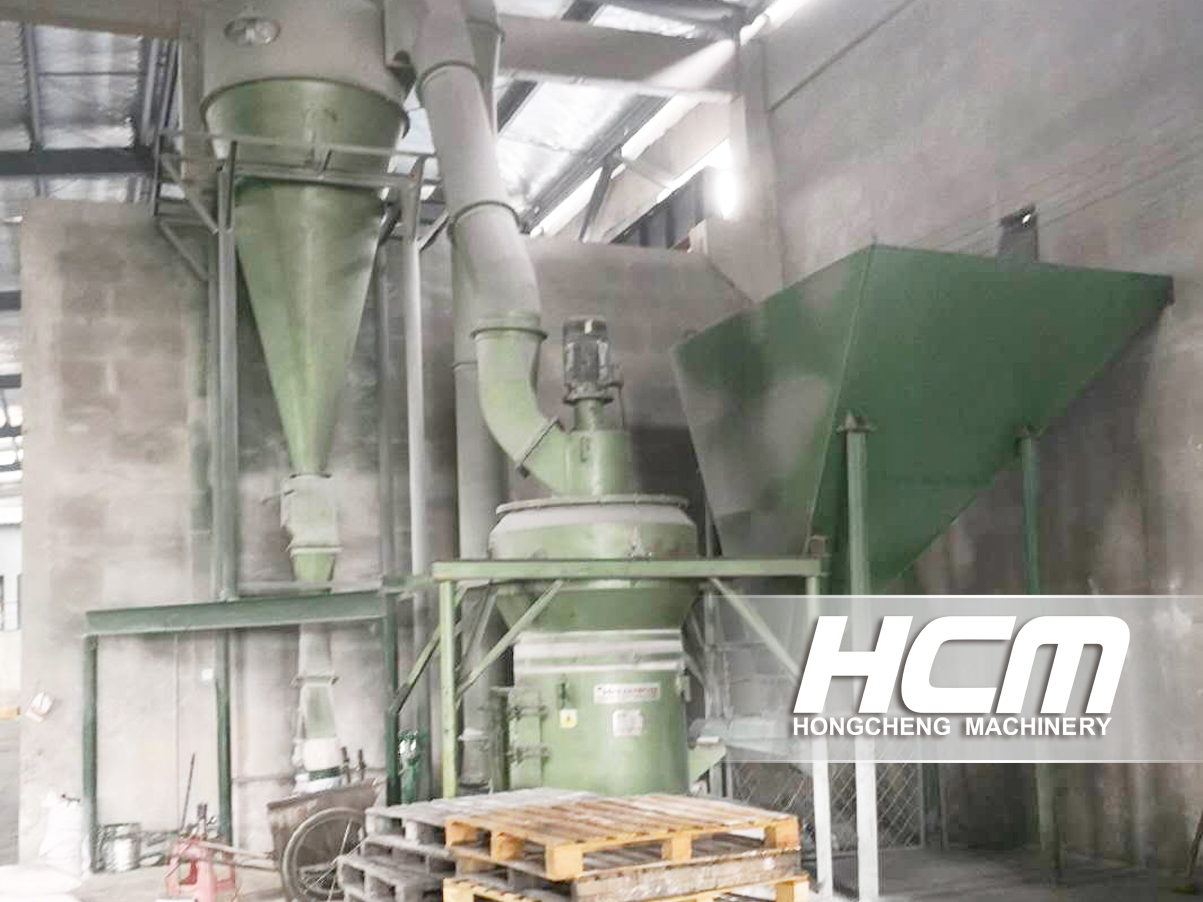

Customer case site Wollastonite production lines
Customer feedback: HCM wollastonite grinding mill has high output, good particle shape of finished products, high qualification rate and good benefit of the whole production line.
About the hourly processing output and other detailed parameters of HCM wollastonite grinding mill
HLM vertical roller mill, HC vertical pendulum grinding mill, HCQ Reinforced grinding mill
● Specifications and technical parameters of high fine HLM vertical mill (non mining and chemical industries)
Model |
Pitch diameter of grinding disc(mm) |
Capacity (t/h) |
Feeding size |
Moisture content of grinding material |
Product fineness(10-40um) |
Product moisture(%) |
Motor power(kw) |
HLM10/2X |
800 |
1-3 |
0-15 |
<5% |
<97% |
≤1 |
55 |
HLM16/2X |
1250 |
2-7 |
0-20 |
<5% |
<97% |
≤1 |
132 |
HLM17/2X |
1300 |
3-12 |
0-25 |
<5% |
<97% |
≤1 |
180 |
HLM19/2X |
1500 |
4-16 |
0-35 |
<5% |
<97% |
≤1 |
250 |
HLM21/2X |
1700 |
6-24 |
0-35 |
<5% |
<97% |
≤1 |
355 |
HLM21/3X |
1750 |
7-27 |
0-35 |
<5% |
<97% |
≤1 |
400 |
HLM24/2X |
1900 |
7-28 |
0-35 |
<5% |
<97% |
≤1 |
450 |
HLM29/3X |
2400 |
9-35 |
0-40 |
<5% |
<97% |
≤1 |
560 |
HLM29/4X |
2400 |
10-39 |
0-40 |
<5% |
<97% |
≤1 |
630 |
HLM30/2X |
2800 |
11-45 |
0-50 |
<5% |
<97% |
≤1 |
710 |
Note: bond index of raw materials<=18kWh/t Note:Raw Materials bond index<=18kWh/t。
● Specifications and technical parameters of HC vertical pendulum mill
Model |
Roller No. |
Grinding ring diameter(mm) |
Maximum feed particle size(mm) |
Product fineness(mm) |
Capacity(t/h) |
Overall power (kw) |
HC1900 |
5 |
1900 |
40 |
0.038-0.18 |
10-35 |
555 |
HC2000 |
5 |
2000 |
40 |
0.038-0.18 |
15-45 |
635-705 |
HC2500 |
6 |
2500 |
40 |
0.038-0.18 |
30-60 |
1210 |
HC3000 |
6 |
3000 |
40 |
0.038-0.18 |
45-90 |
1732 |
Note: the above takes the processing of calcite (feed rate ≤ 10) as an example. Due to different materials and different output, the above data are only for reference.
● Specifications and technical parameters of HCQ improved pulverizer
Model |
Number of grinding rollers |
Outer diameter of grinding ring(mm) |
Feed particle size(mm) |
Finished particle(mm) |
Capacity(t/h) |
Overall power(kw) |
HCQ1290 |
3 |
1290 |
≤20 |
0.038-0.18 |
1.5-6 |
125 |
HCQ1500 |
4 |
1500 |
≤25 |
0.038-0.18 |
2-13 |
238.5 |
Note: 1. Take limestone processing as an example. Due to different materials and different output, the above data are only for reference.
2. The pulse dust collector is not standard, but can be selected according to environmental protection requirements.
The output of HCM wollastonite grinding mill is 1-45 tons per hour. However, in actual operation, the production capacity of wollastonite grinding mill will vary according to the nature of treated materials, hardness, grinding fineness and other factors. If the material hardness is low and the production capacity is high, the production efficiency of hard materials will be slightly lower than the normal range. Therefore, the actual processing capacity of wollastonite grinding mill shall be analyzed according to the actual situation of customers.
What is the price of wollastonite grinding mill of HCM?
There are many factors that affect the price of equipment. Usually, when you ask the customer service of the manufacturer, the customer often asks about the fineness of materials, the desired capacity, water content, etc., so HCM will give the customer a quotation.
The prices of wollastonite grinding machines in the market vary. You need to carefully select economical equipment. HCMilling(Guilin Hongcheng), as a professional manufacturer of wollastonite mill R & D, production and sales, we can provide users with not only affordable, energy-saving and environmental protection equipment, but also perfect pre-sales, sales and after-sales services, so that you can choose cost-effective equipment.
If you are in need of any non-metallic grinding mill, contact mkt@hcmilling.com or call at +86-773-3568321, HCM will tailor for you the most suitable grinding mill program based on your needs, more details please check www.hcmilling.com.
