Wollastonite Raymond mill

Raymond Mill - the originator of Pendulum Grinding Mill

Max feeding size: 15-40mm
Capacity: 0.3-20t/h
Fineness: 0.18-0.038mm
In terms of traditional pendulum roller mill, the Wollastonite Raymond Roller Mill has been upgraded in many aspects. All of the technical parameters takes the leading role in China mill industry. It ranges from 2R to 6R, including 2R2713, 3R3220, 4R3216, 4R3218, 4R3220, 5R4121, 5R4125, 6R5127. The fineness of Wollastonite Raymond Mill can be adjusted from 0.18mm(80 mesh) to 0.038mm(400 mesh), and maximum capacity reach 20t/h. The powder processed by Wollastonite Raymond Roller Mill can be used as raw materials or fillers for paper making, ceramics, cement, rubber, plastics, etc. It can also be used as gas filter material, heat insulation material and metallurgical flux.
X
Your need leave your E-mail address before download the product PDF.Your coopration is appreciate.
Wollastonite Raymond mill_20201104144813.pdf

  • *Name:

  • *Email:

  • Tel:

  • Warm Tip: Please make sure you enter a correct E-maill address .We will send you relevant information and product quotation regularly
    mkt@hcmilling.com PDF Download +86-(0)773-3568321 +86-(0)773-3568987
    We're here to help:
    Easy ways to get the answers you need. SERVICES ONLINE >
    • Introduction
    • Mill Structure
    • Main technical data
    • Performance advantages

    Raymond mill, or R series grinding mill, pendulum mill, originated by Raymond brothers around 1880s. Raymond mill was introduced in China around 1950s, Guangxi Guilin was one of the grinding mill production base.



    After the practicing and innovating of more than 100 years, the structure of R-mill is becoming better day by day. As a professional grinding mill manufacturer, Guilin Hongcheng applied latest technology to upgrade Raymond mill and made a better performance for it.



    HCM introduces our original new Pendulum Roller Mill. With larger grinding surface, Wollastonite Raymond Mill increase the production capacity and reduce per capita energy consumption.



    Wollastonite Raymond Roller Mill is suited for dry and wet grinding process, for different Mohs scale of hardness, for wide Mesh range of material sizes from granular to fine, with TPH efficient performance, stable operation, low energy, long lifetime and short downtime.



    Pendulum Roller Mill has some advantage features including overlay welding roller assembly, automatic lubrication system, pendulum swing grinding and other patented technologies.



    Working Principle:

    Raw material is firstly broken by jaw crusher into required particle size, which are carried by bucket elevator up to the storage hopper. The vibration feeder then conveys the crushed materials at a fixed rate into the grinding chamber of the main unit for pulverizing.



    The three rollers hung upon the spider-arm are running around the shaft. With the centrifugal force, the four rotational rollers will go around the ring tightly. The raw materials is put up between the rollers and rings by the blade to make the raw materials into powder. The ground materials is blown up to the classifier, through which the powder is separated by the airflow.



    Coarse particles fall back down to the mill for regrinding.

    The needed particles will go into the collector where products will be removed through the discharge opening. The purified air flows to the air blower through the pipe above big cyclone collector. Air flue is circular type. Air stream in all pipelines is negative pressure except for that in the air blower and grinding chamber, which improved the working condition in the workshop.



    Wind volume in air flue increases as the moisture in material changes into vapour leaking in from the flange conjunctions and feed opening. Added air volume is transporting through the air blower and after-wind pipe, to simple collector. The end powder enters the collector with air stream and discharged from discharge valve.



    Application Range:

    The fineness can be adjusted from 0.18mm(80 mesh) to 0.038mm(400 mesh), whose range is much wider than that of traditional Raymond mill.

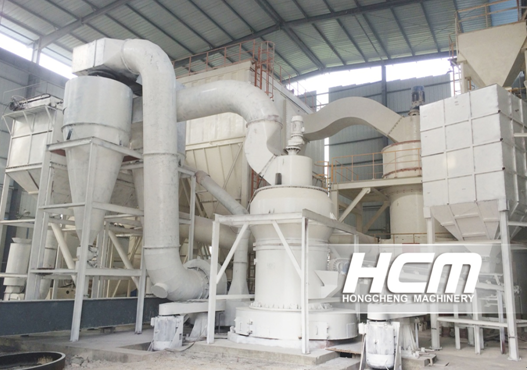

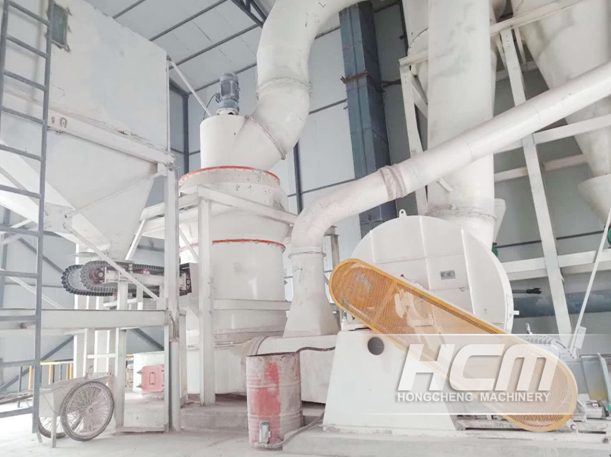

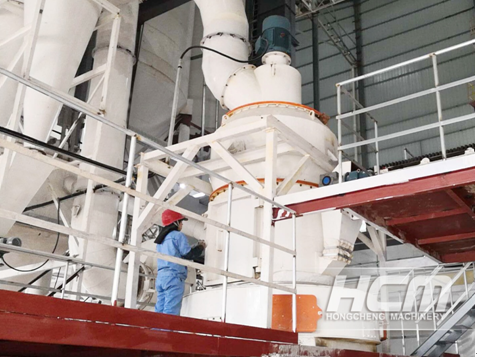

    Wollastonite Raymond Roller Mill consists of main mill, electromagnetic-vibrating feeder,  constraint turbine classifier, pipes, high pressure blower, cyclone separator, hopper, electronic control system, collecting system, jaw crusher, pan elevator, base, central shaft support, ring, spider-arm, roller assembly, shaft, lifter support, lifter support base etc.



    The main mill consists pedestal, return air box, shovel, roller, ring, housing and motor. The ring and roller are made from wear-resistant material, whose surface is also given wear-resistant treatment. For the driving system, there are reducer and double-motor system for option. The classifying system uses the turbine classifier.



    Various feeding and conveying system can be done separately according to different material. The close system with cyclone plus pulse-jet collector and the open system with only pulse-jet collector are available for collecting system. As to the control system, you can select auto control or remote control.

    Note: The specification is just a reference. The actual production depends on these materials being processed.

    1. The grinding mill is in stereo-chemical structure, consume small floor space. The equipment has strong systematic because it can organize an independent and complete production system of raw material crushing, transporting, grinding to production collecting, storing and packing.



    2. Driving system (double gearing, single gearing and reducer) and classify system (classifier and analyzer) can be configured according to the material or customer requirement, in order to ensure best operation condition.



    3. Depending on the material to configure the pipe and blower system, in order to reduce wind resistance and pipe abrasion, ensuring high capacity.



    4. Applied high quality thicken steel to produce important parts, applied high performance wear-resistant material to produce wear-resistant parts. The equipment has high wear-resisting property and reliable operation.



    5. Centralized controlled electric system realized unmanned operation and easy maintenance.



    6. Pulse exhaust system can be applied to deal with remain air. Filtering efficiency can reach 99.9%.
