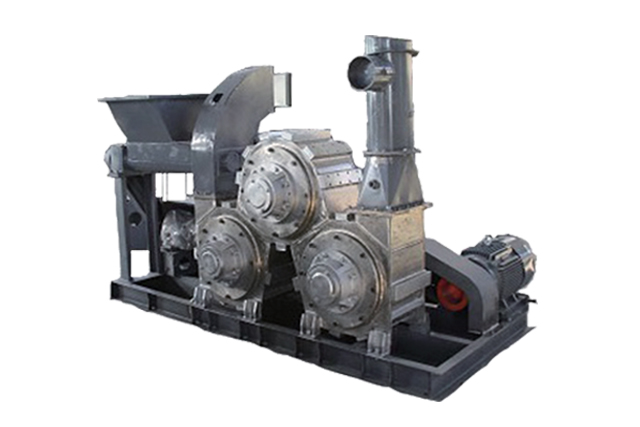

HCG Modified Powder Machine / Mineral Powder Coating Machine

To manufacture sophisticated products with quality; To enhance market credibility with service.

Max feeding size:
Capacity:
Fineness:
Modified powder machine/Mineral Powder Coating Machine is used for dispersing the powder surface modification and deposition process. It can not only improve the compatibility between inorganic mineral filler and organic polymers, but also can improve the interfacial bonding strength, to improve the amount of filled powder filler, reduce production costs, mainly used in the field of non-metallic mineral fillers or pigments such as plastics, rubber, adhesives and other modern polymer materials, polymer-based composite materials, functional materials and coatings industries.
X
Your need leave your E-mail address before download the product PDF.Your coopration is appreciate.
Hong Cheng -HLM grinding mill.pdf

  • *Name:

  • *Email:

  • Tel:

  • Warm Tip: Please make sure you enter a correct E-maill address .We will send you relevant information and product quotation regularly
    mkt@hcmilling.com PDF Download +86-(0)773-3568321 +86-(0)773-3568987
    We're here to help:
    Easy ways to get the answers you need. SERVICES ONLINE >
    • Introduction
    • Mill Structure
    • Main technical data
    • Performance advantages

        Modified powder machine / Mineral Powder Coating Machine is used for dispersing the powder surface modification and deposition process. It can not only improve the compatibility between inorganic mineral filler and organic polymers, but also can improve the interfacial bonding strength, to improve the amount of filled powder filler, reduce production costs, mainly used in the field of non-metallic mineral fillers or pigments such as plastics, rubber, adhesives and other modern polymer materials, polymer-based composite materials, functional materials and coatings industries.

        The end products are widely applied on powder modification in the field of high calcination, silica powder, heavy calcium carbonate, wollastonite, talc, light calcium, alumina, silica, magnesium oxide, magnesium hydroxide and the like. Mineral powder after modification not only can greatly improve the compatibility of inorganic mineral filler and organic polymer, but also improve the interface bonding force, enhance the mechanical strength of the material and other overall performance, greatly improve the powder filler filling volume, to reduce production costs at the same time to endowed special physical and chemical properties to the product.

        Modified powder machine / Mineral Powder Coating Machine has good surface modification effect for heavy, light calcium carbonate, talc, kaolin, silica, limestone, quartz powder, mica, silica, titanium dioxide, zinc oxide, aluminum oxide, agnesium hydroxide, barium sulfate, illite, pyrophyllite, tremolite and other powders. Mineral powders after modification, not only can greatly iprove the compatibility of the inorganic mineral filler and the organic polymer, improve boundary srface adhesion, make mecanical strength of the reinforcing material and overall performance, but also a substantial raise to the degree of filling amount of powder filler, reduce production costs while assigned the product some special physical and chemical properties.

    Modified powder machine/Mineral Powder Coating Machine to complete a surface treatment of powder by three modified cylinder which lies like triangle, dry powder and precisely metered agents entering into modified cylinder at the same time, with the high-speed rotation of the rotor, those powder and agents were fluidized decanter run; powder were collision, friction, shearing during rapid rotation with heat generated by rotor to deposition modified quickly.

    1、Classic process:   ( Used by World-Famous Mineral Processing Factory )
    Process Flowsheet:Double Pin Mill+Dispersion Machine (Note: the data below is on the of GCC coating.)

    Model / Capacity / Fineness2003 / 3003 / 6003 / 900
    D97:5um 300kg/h 700kg/h 1800kg/h 3000kg/h
    D97:10um 500kg/h 1300kg/h 3300kg/h 5800kg/h
    D97:15um 600kg/h 1600kg/h 4000kg/h 7200kg/h


    2、Simple Process( Popular in China )
    a, Three-roller Continuous Coating Processe  (Note: the data below is on the of GCC coating.)

    Model / Capacity / Fineness250400630800
    D97:5um 300kg/h 700kg/h 1800kg/h 3000kg/h
    D97:10um 500kg/h 1300kg/h 3300kg/h 5800kg/h
    D97:15um 600kg/h 1600kg/h 4000kg/h 7200kg/h


    b、Process flow diagram: vortex mill modification flow chart
    Main parameter:

    ModelFinenessCapacityMain mill power
    HXG 480 D97:10um 1.5T/h 45KW
    HXG 750 D97:10um 3T/h 75KW


    Note: The above data is an example of calcium carbonate GCC powder modifiction.

        HLG Continuous Powder Surface Modification machine is Guilin Hong Cheng developed exclusively for a variety of inorganic powder surface treatment processing equipment after painstaking research, has advantages and characteristics of high capacity and efficiency, advanced technology, low energy consumption, easy maintenance performance, production capacity could reach up to 6.0t/h or more, activation index is ≥98%, the unit energy consumption is ≤35kwh/t. Mainly includes three models, HLG-3/600 type continuous powder surface modification machine, HLG-3/300 type continuous powder surface modification machine, HLG-3/900 type continuous powder surface modification machine.



     Data ModelMain machine Power(kw)Spindle speed (r/min)Capacity (kg/h)Dusting area (㎡)Blower power (kw)
    HLG300 55.5 4500 500-2000 60 5.5
    HLG600 111 2700 1500-3500 150 22
    HLG900 225 2000 3000-7500 300 45

    Performance Advantages:

    1、Continuous operation, huge processing volume capacity, suitable for all sizes of industrial production;

    2、The modified agent has a high usage rate; powder coating ratio and activation index is high with less amount, low energy consumption;

    3、The device is suitable for a variety of fineness of materials, have a unique modified activation effect for small proportion, big bulk density ratio material such as mica, silica, talc.

    4、Pharmaceutical and powder’s high-speed gas-solid vortex mixing operation can obtain high modified efficiency, substantially without destroying the original powder grain shape;

    5、The heating and cooling finished by one single machine, without separated heating and cooling system, easy to operate;

    6、Material run under negative pressure, good sealing performance, dust does not leak with good environmental effects;
